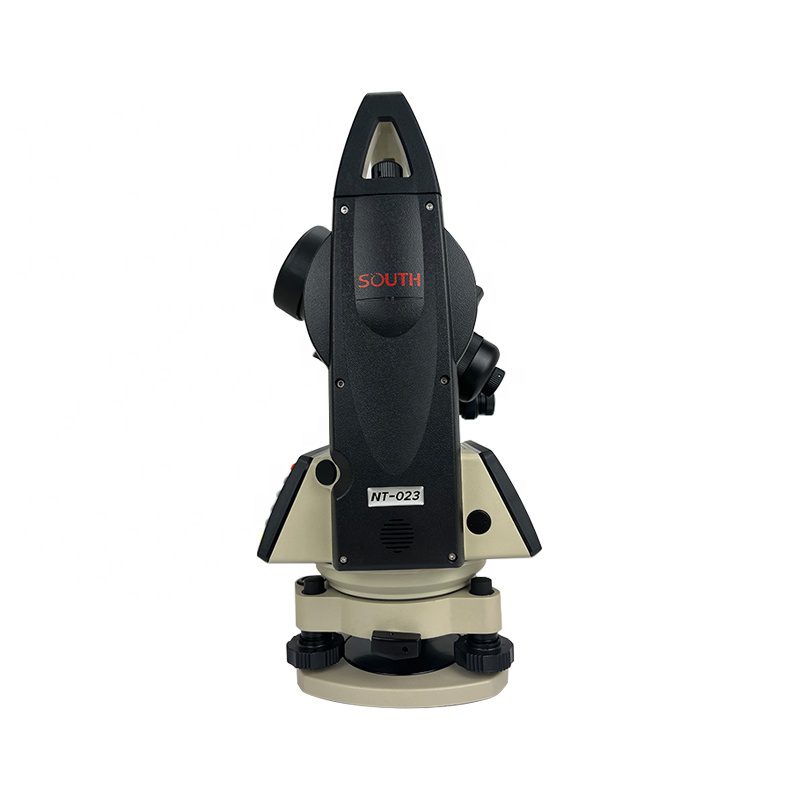

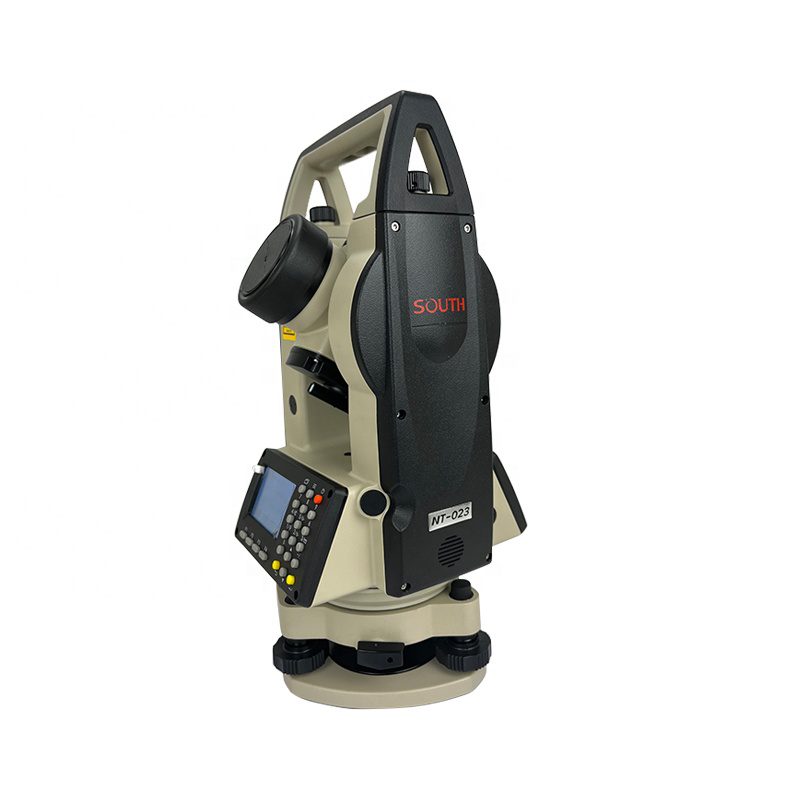

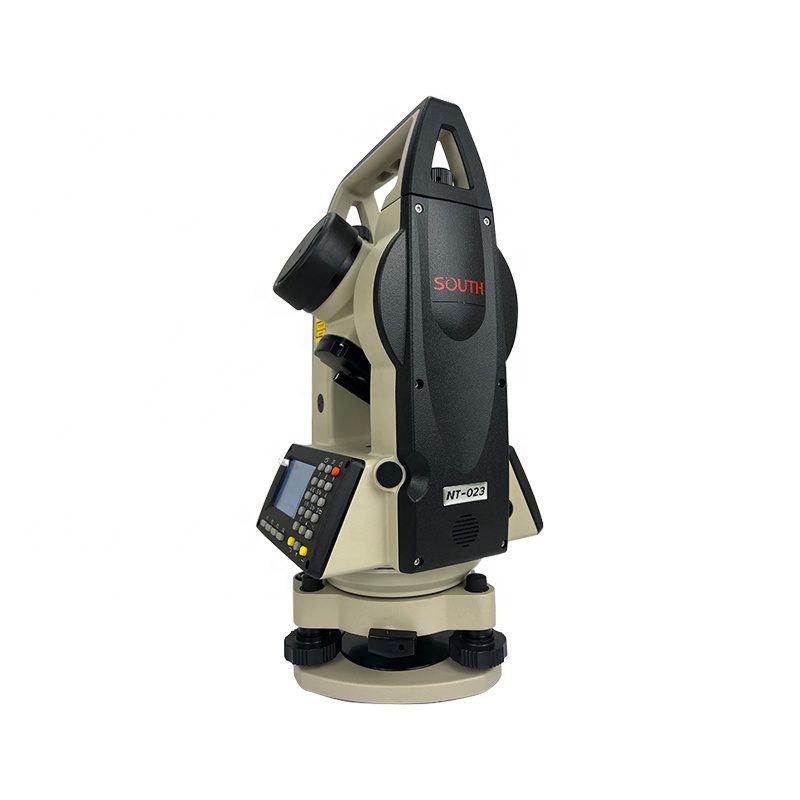

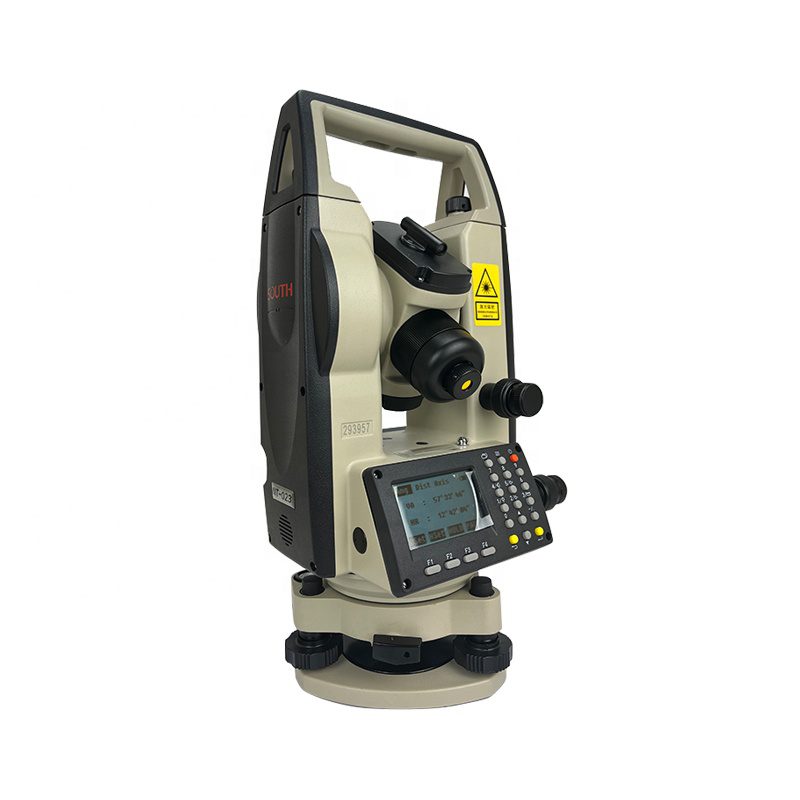

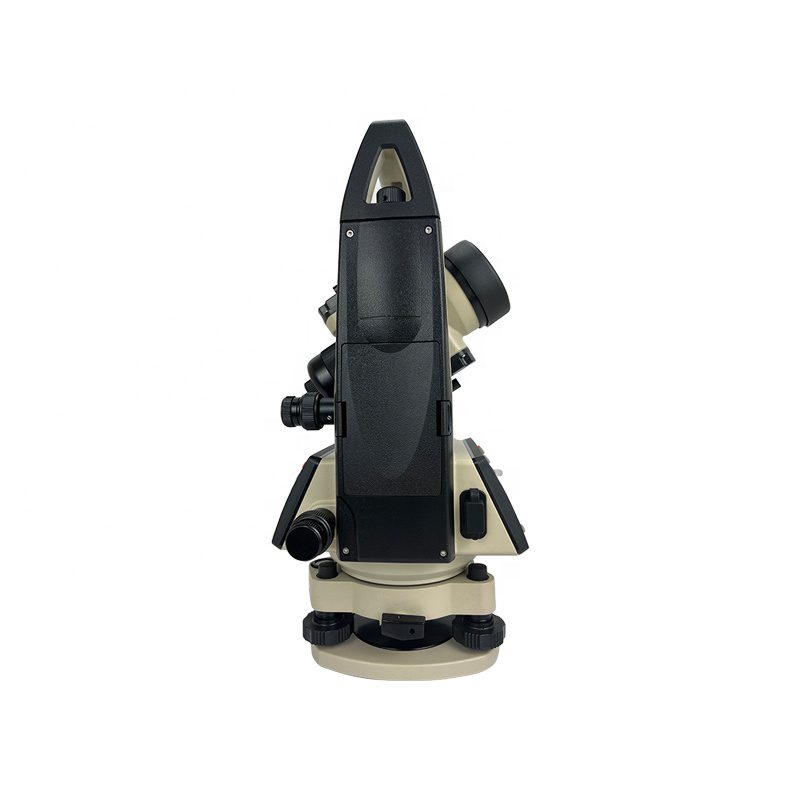

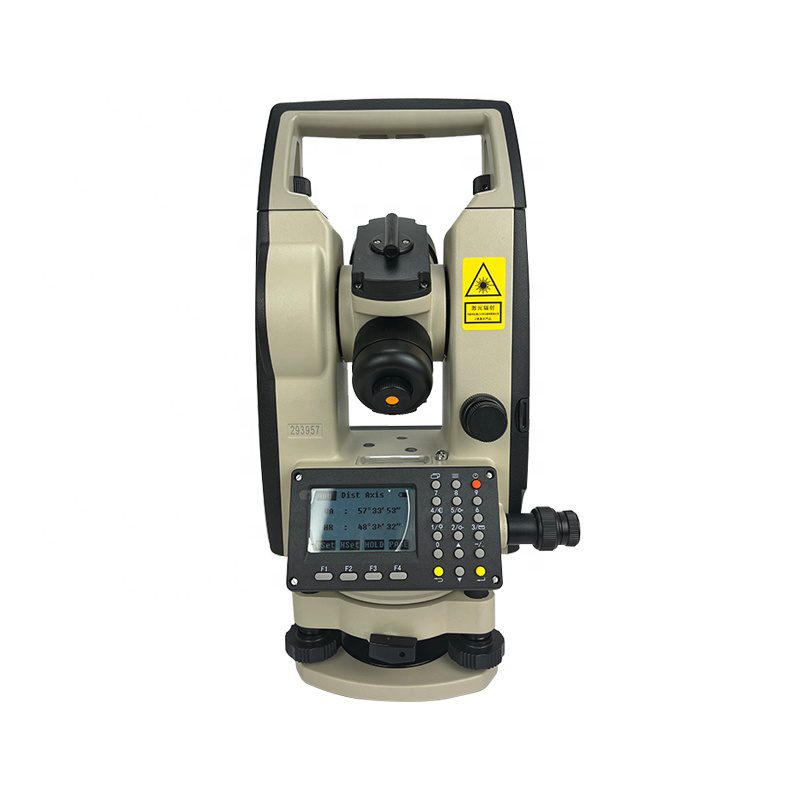

High Accuracy Laser Theodolite SOUTH NT-023 Theodolite Prices Surveying Instrument
High Accuracy Laser Theodolite SOUTH NT-023 Theodolite Prices Surveying Instrument - Image 2
High Accuracy Laser Theodolite SOUTH NT-023 Theodolite Prices Surveying Instrument - Image 3
High Accuracy Laser Theodolite SOUTH NT-023 Theodolite Prices Surveying Instrument - Image 4
High Accuracy Laser Theodolite SOUTH NT-023 Theodolite Prices Surveying Instrument - Image 5
High Accuracy Laser Theodolite SOUTH NT-023 Theodolite Prices Surveying Instrument - Image 6
Weight 4.7 kg
Dimensions 34 × 16.4 × 16 in
Warranty

1 Year

Brand name

South

Product name

Theodolite

Type

NT-023

Field of view

1°30'

Operating time

10 hours

Plate level

30"/2mm

Place of Origin

Guangdong, China

Function

Angle measurement

Battery

7.2V 6800mAh

Color

Black

Operating temperature

-20℃~+45℃

Min. reading

1"/5" (Selectable)

High Accuracy Laser Theodolite SOUTH NT-023 Theodolite Prices Surveying Instrument

In Stock

₦1,216,141.53

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

Start Live Chat

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Categories: ,

Description

Certificate

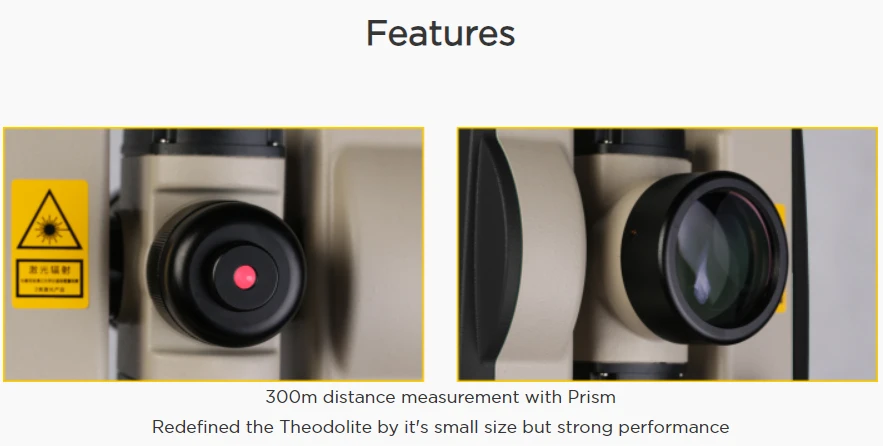

ce Measurement (Single Prism)
Max. Range
300m
Accuracy
±(3mm＋2ppm*D)
Measure Time
Continuous: 0.35s, Single 1.5s
Atmosphere Correction
Auto correction by input parameter
Prism Constant
Auto correction by input parameter

Telescope
Erect
Magnification
26.5x
Effective Aperture
152mm
Resolving Power
3″
Field of view
1°30′
Minimum Focus Range
1.5m
Multiple Constant
100
Additive Constant
0
Stadia Accuracy
≤0.40%/L
Tube Length
155mm

Angle Measurement
Measuring Method
Absolute Encoding
Dia. of Encoder Disk
79mm
Minimum Reading
1″
Accuracy
2″
Detection Method
Horizontal: Dual, Vertical: Dual

Compensator
Type
Single Axis
Working Range
±3′
Accuracy
±3″

Laser Plummet
Accuracy
±1.5mm(@1.5m)
Spot Diameter
±2.5mm(@1.5m)
Wave Length
635±20mm

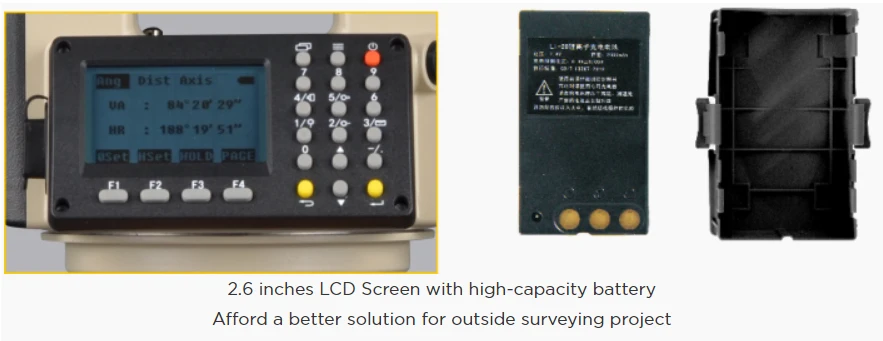

Display Unit
Type
2.6 Inch,160*96 LCD Screen
Power Supply
Battery
7.4V Lithium Rechargeable Battery
Environment
Working Range
﹣20℃ ～﹢50℃

Dimension
Size
165 × 160 × 340 (mm)
Weight
4.7kg
Details Images详图

Additional information

Weight 4.7 kg
Dimensions 34 × 16.4 × 16 in
Warranty

1 Year

Brand name

South

Product name

Theodolite

Type

NT-023

Field of view

1°30'

Operating time

10 hours

Plate level

30"/2mm

Place of Origin

Guangdong, China

Function

Angle measurement

Battery

7.2V 6800mAh

Color

Black

Operating temperature

-20℃~+45℃

Min. reading

1"/5" (Selectable)
