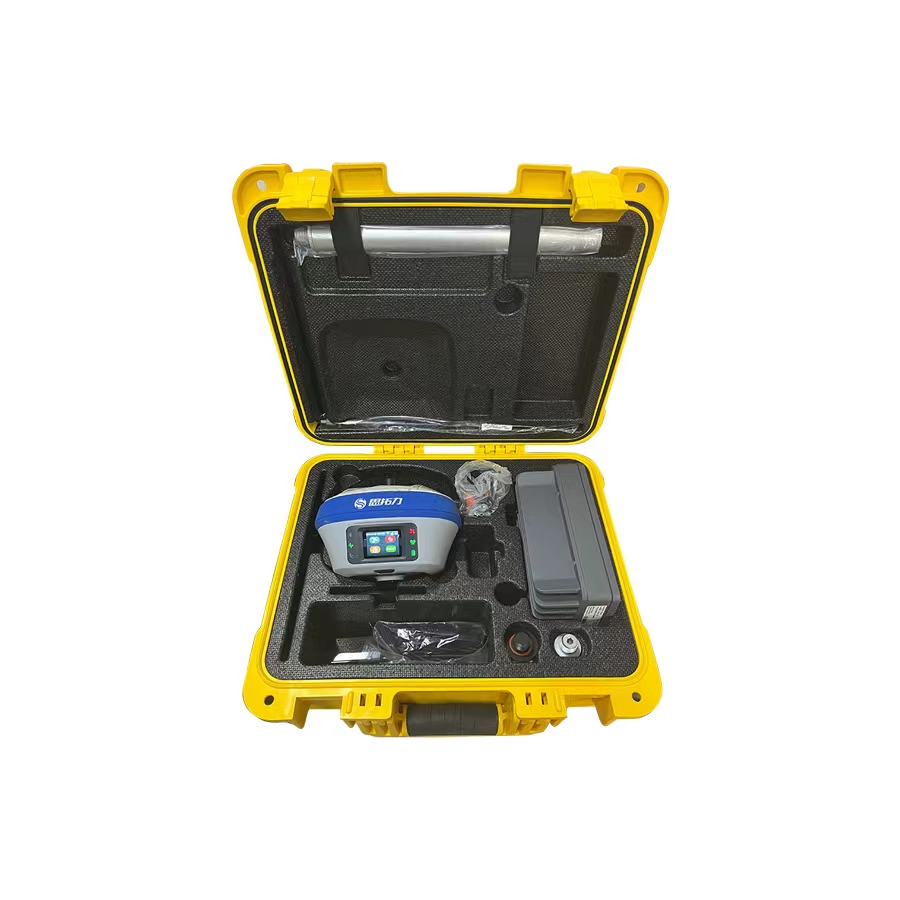

STONEX Gnss Rtk S980+ S980A S6II Gps Gps De Doble Frecuencia Cheap Differential Gps Price RTK
₦4,648,650.00
In Stock
Did you like this product? Add to favorites now and follow the product.
Have a Question? Ask a Specialist
Description
High Performance Land Surveying Instrument 1408 Channels Stonex S980A/S6II GPS RTK with Best Price GNSS RTK
High Performance Land Surveying Instrument 1408 Channels Stonex S980A/S6II GPS RTK with Best Price GNSS RTK

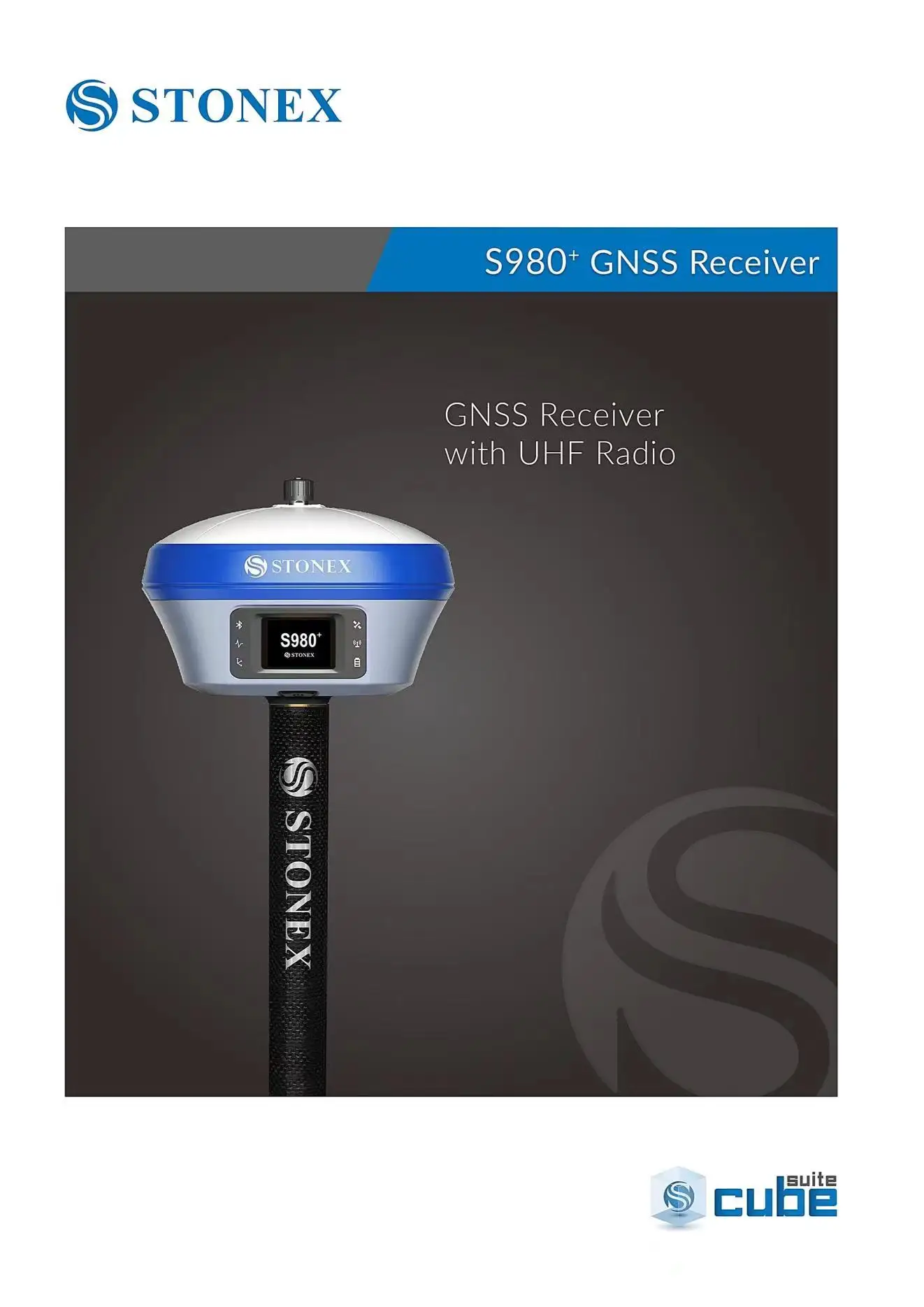

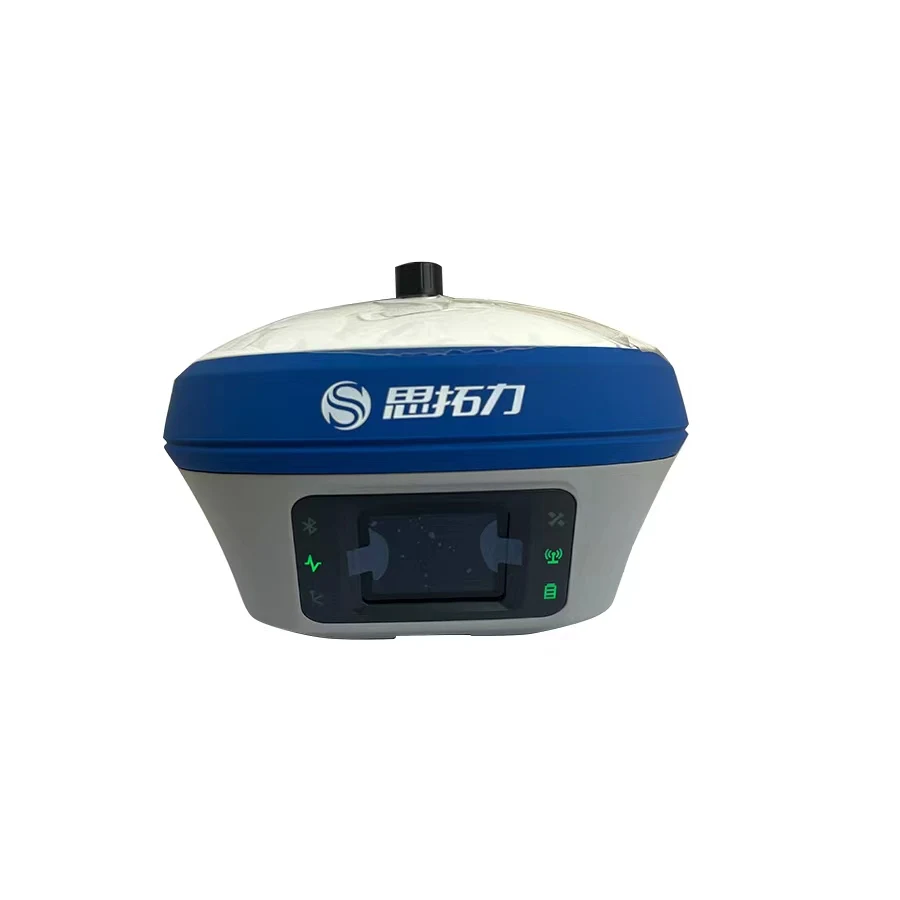

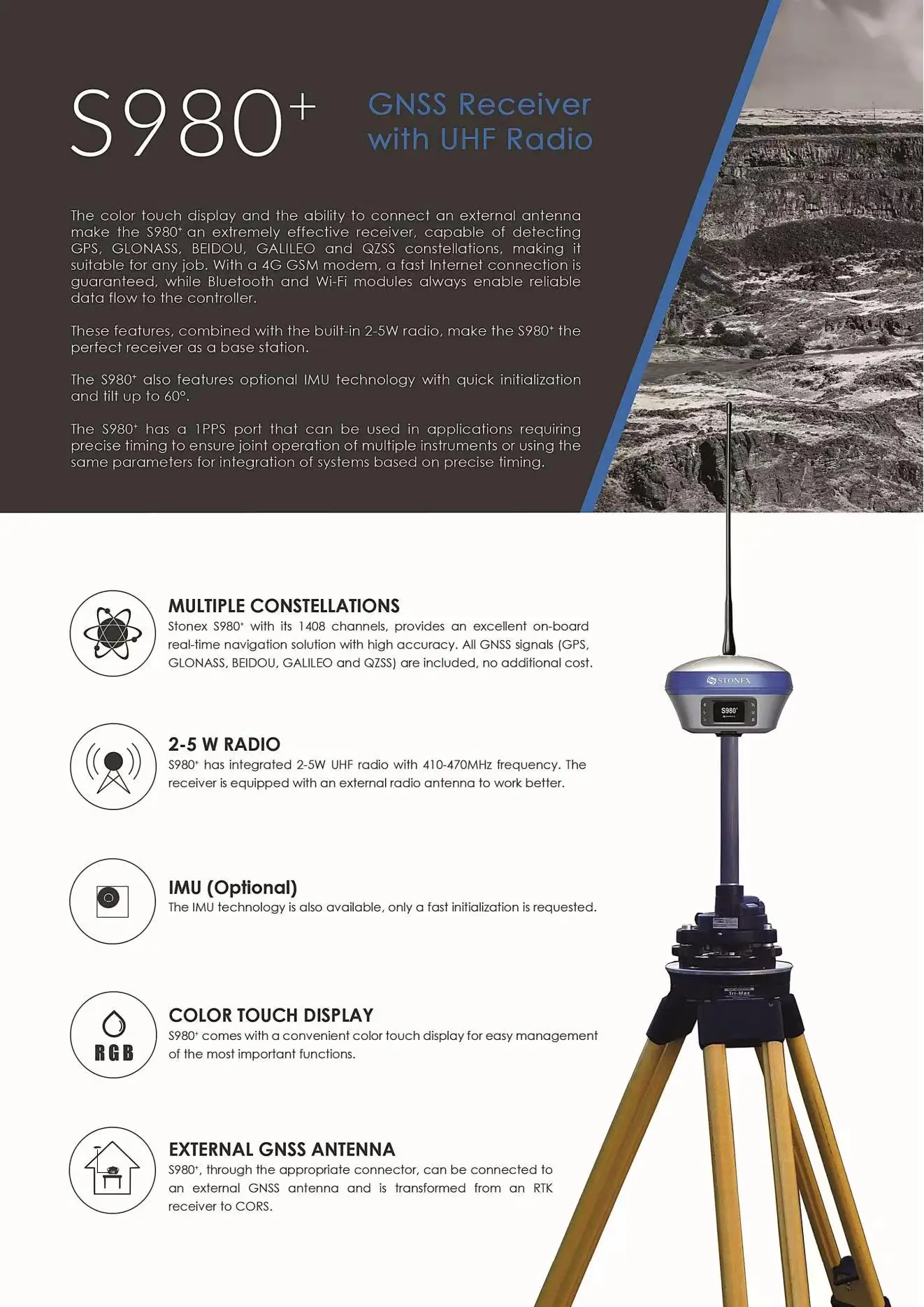

Stonex S980A integrated GNSS receiver tracks all the present constellations and satellite signals GPS, GLONASS, BEIDOU,
GALILEO,QZSS and IRNSS. Through the 4G GSM modem a fast internet connection is guaranteed and the Bluetooth and Wi-Fi modules allow always reliable data flow to the controller. These features combined with the integrated 2-5 watt radio make S980A the perfect base station receiver.

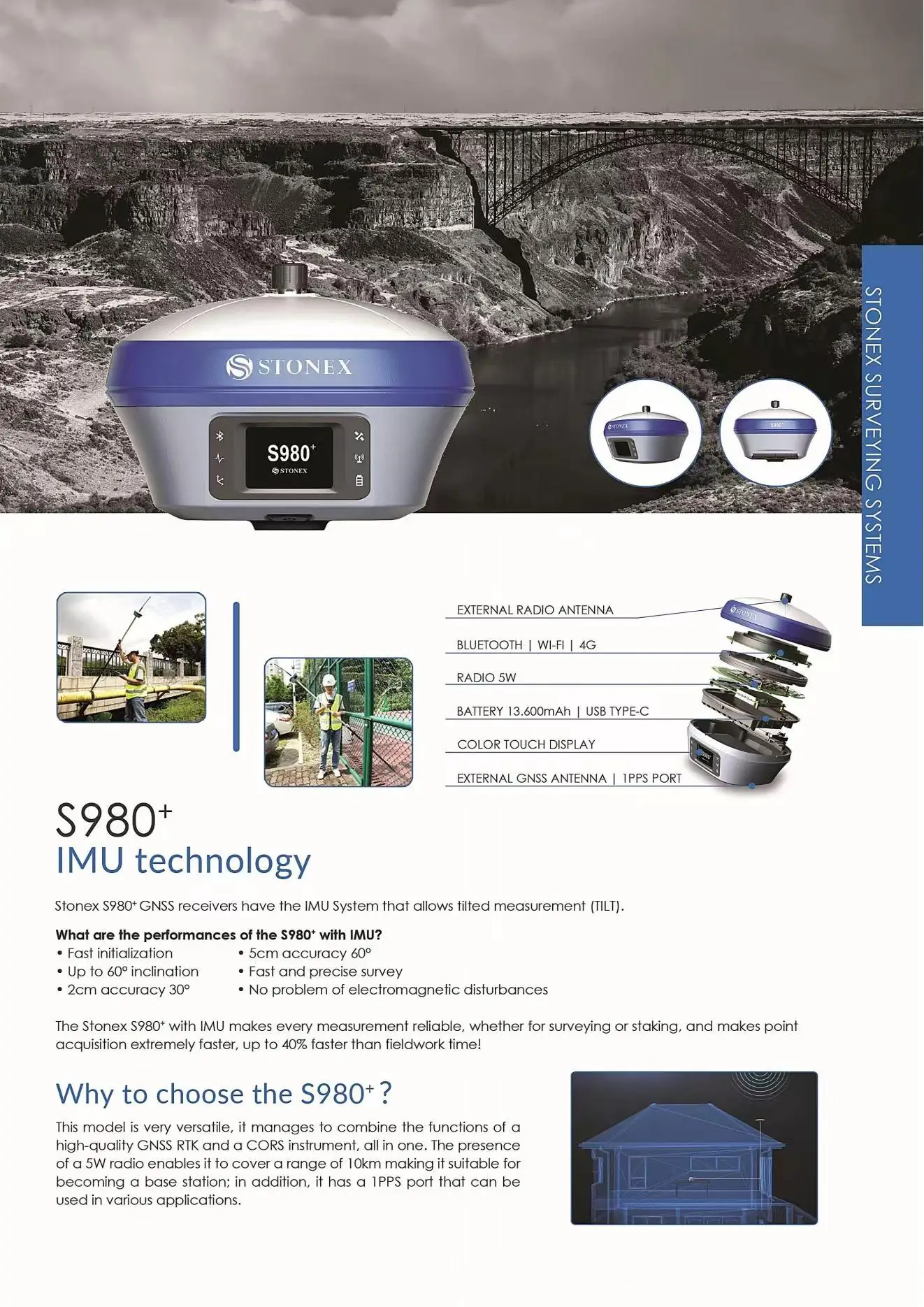

The color touch display and the possibility of connecting an external antenna makes S980A an extremely effective receiver for every type of job. S980A is also equipped with an E-Bubble and the optional IMU technology: fast initialization, up to 60° inclination. S980A has a 1PPS port which can be used in applications that require precise synchronization time to ensure that multiple instruments work together or that use the same parameters for system integration based on precise time.
Stonex S980A integrated GNSS receiver tracks all the present constellations and satellite signals GPS, GLONASS, BEIDOU,
GALILEO,QZSS and IRNSS. Through the 4G GSM modem a fast internet connection is guaranteed and the Bluetooth and Wi-Fi modules allow always reliable data flow to the controller. These features combined with the integrated 2-5 watt radio make S980A the perfect base station receiver.
The color touch display and the possibility of connecting an external antenna makes S980A an extremely effective receiver for every type of job. S980A is also equipped with an E-Bubble and the optional IMU technology: fast initialization, up to 60° inclination. S980A has a 1PPS port which can be used in applications that require precise synchronization time to ensure that multiple instruments work together or that use the same parameters for system integration based on precise time.
|

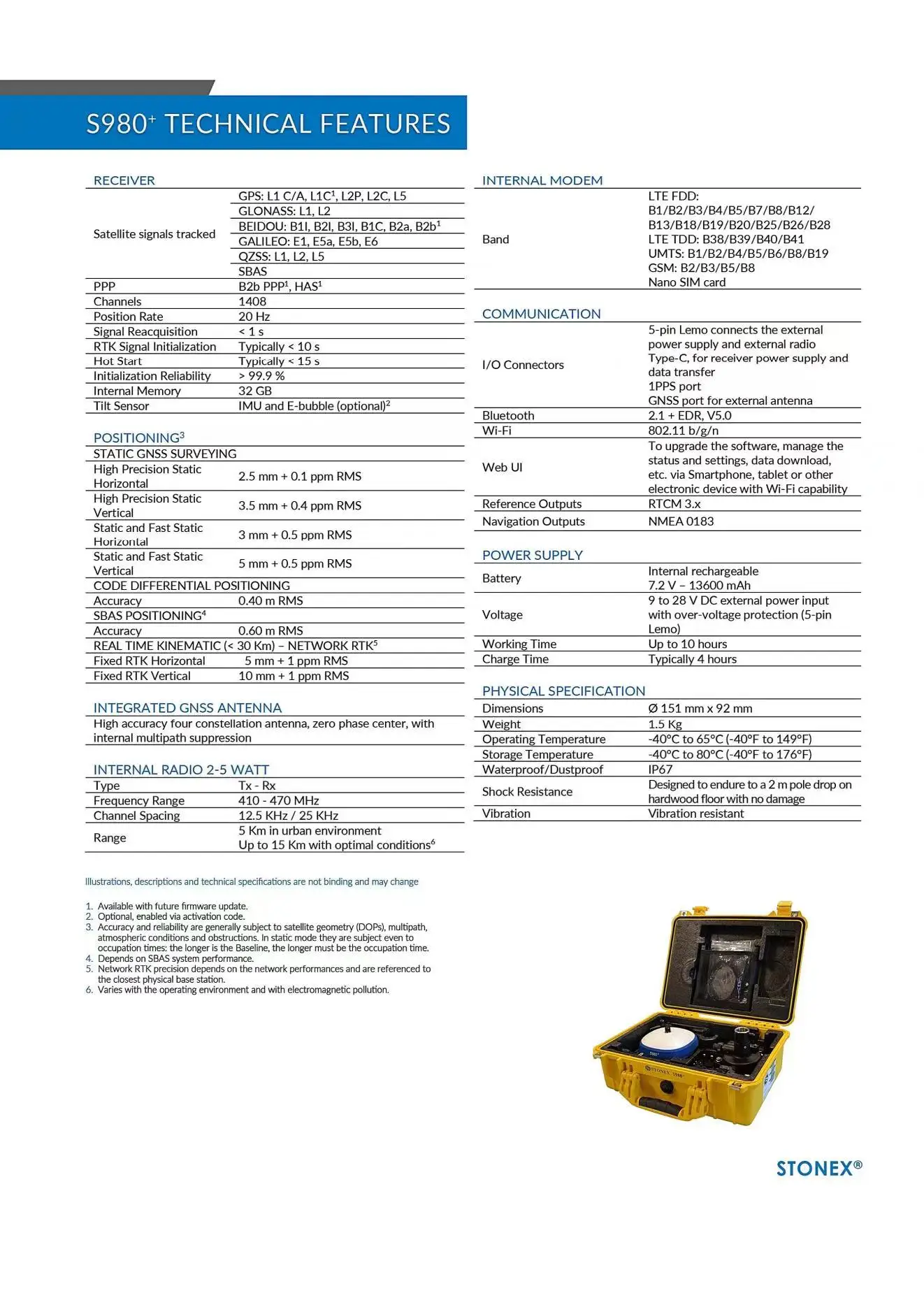

Model |
S980A/S6II |
|
Receiver |
|
|
Satellite signal tracked |
GPS: L1C/A, L1C, L1P, L2C, L2P, L5 |
|
GLONASS: L1C/A, L1P, L2C/A, L2P, L3 |
|
|
BEIDOU: B1, B2, B3, ACEBOC |
|
|
GALILEO: E1, E5a, E5b, ALTBOC, E6 |
|
|
QZSS: L1C/A, L1C, L2C, L5, L6 |
|
|
IRNSS: L5 |
|
|
SBAS: L1, L5 |
|
|
L-Band |
Altas H10/H30/Basic(optional) |
|
Bridging of RTK outages |
aRTK-Works up to 20 minutes |
|
Channels |
800 |
|
Position Rate |
10Hz(optional 20-50Hz) |
|
Signal Reacquisition |
< 1s |
|
RTK Signal Initialization |
Typically < 10s |
|
Hot Start |
Typically < 15s |
|
Initialization Reliability |
> 99.9% |
|
Internal Memory |
32 GB |
|
Tilt sensor |
E-BubbleIMU(optional) |
|
Positioning |
|
|
STATIC GNSS SURVEYING |
|
|
High Precision Static Horizontal |
2.5mm + 0.1ppm RMS |
|
High Precision Static Vertical |
3.5mm + 0.4ppm RMS |
|
Static and Fast Static Horizontal |
3mm + 0.5 ppm RMS |
|
Static and Fast Static Vertical |
5mm + 0.5ppm RMS |
|
CODE DIFFERENTIAL POSITIONING |
|
|
Accuracy |
0.40m RMS |
|
SBAS POSITIONING |
|
|
Accuracy |
0.60m RMS |
|
REAL TIME KINEMATIC(< 30km)- NETWORK RRK |
|
|
Fixed RTK Horizontal |
5mm + 1ppm RMS |
|
Fixed RTK Vertical |
10mm + 1ppm RMS |
|
RTK Signal Initialization |
2 to 8 seconds |
|
INTEGRATED GNSS ANTENNA |
|
|
High accuracy four constellation antenna, zero phase center, with internal multipath suppressive |
|
|
INTERNAL RADIO 2-5 WATT |
|
|
Type |
Tx – Rx |
|
Frequency Range |
410-470 MHz |
|
Channel Spacing |
12.5KHz / 25KHz |
|
Range |
5 Km in urban environment Up to 15Km with optional conditions |
|
INTERNAL MODEM |
|
|
Band |
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28LTE TDD: B38/B39/B40/B41 UMTS: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 Nano SIM card |
|
COMMUNICATION |
|
|
I/O Connactors |
5 pins Lemo, connect the external power supply and external radioType-C. for receiver power supply and data transfer 1 PPS port GNSS port for external antenna |
|
Bluetooth |
2.1 + EDR, V4.1 |
|
Wi-Fi |
802.11 b/g/n |
|
Web UI |
To upgrade the software manage the status and setting, data download, etc. via Smartphone, tablet or other electronic device with Wi-Fi capability |
|
Reference outputs |
RTCM 3.0, 3.2CMR, CMR+, DGPS |
|
Navigation outputs |
NMEA 0183 |
|
POWER SUPPLY |
|
|
Battery |
Internal rechargeable 7.2V-13,600mAh |
|
Voltage |
9 to 28 V DC external power input with over-voltage protection( 5 pins Lemo) |
|
Working Time |
Up to 10 hours |
|
Charge Time |
Typically 4 hours |
|
PHYSICAL SPECIFICTION |
|
|
Dimensions |
φ151mm * 92mm |
|
Weight |
1.48 Kg |
|
Operating Temperature |
-40℃ to 65℃(-40℉ tp 149℉) |
|
Storage Temperature |
-40℃ to 80℃(-40℉ tp 176℉) |
|
Waterproof/Dustproof |
IP67 |
|
Shock Resistance |
Designed to endure to a 2m pole drop on concrete floor with no damage |
|
Vibration |
Vibration resistant |
Additional information
| Weight | 25 kg |
|---|---|
| Dimensions | 45 × 40 × 45 in |
| Brand name | STONEX |
| BeiDou | B1/ B2/ B3 |
| GLONASS | L1CA/ L2CA/ L3CA |
| QZSS | L1CA/ L1SAIF/ L1C/ L2C/ L5/LEX |
| IRNSS | L5 |
| Water/dustproof | IP67 |
| GPS | L1CA/ L2E/ L2C/ L5 |
| Galileo | E1/ E5A/ E5B/ E5AltBOC/ E6 |
| SBAS | L1CA/ L5 |
| Channels | 1408 Channels |
