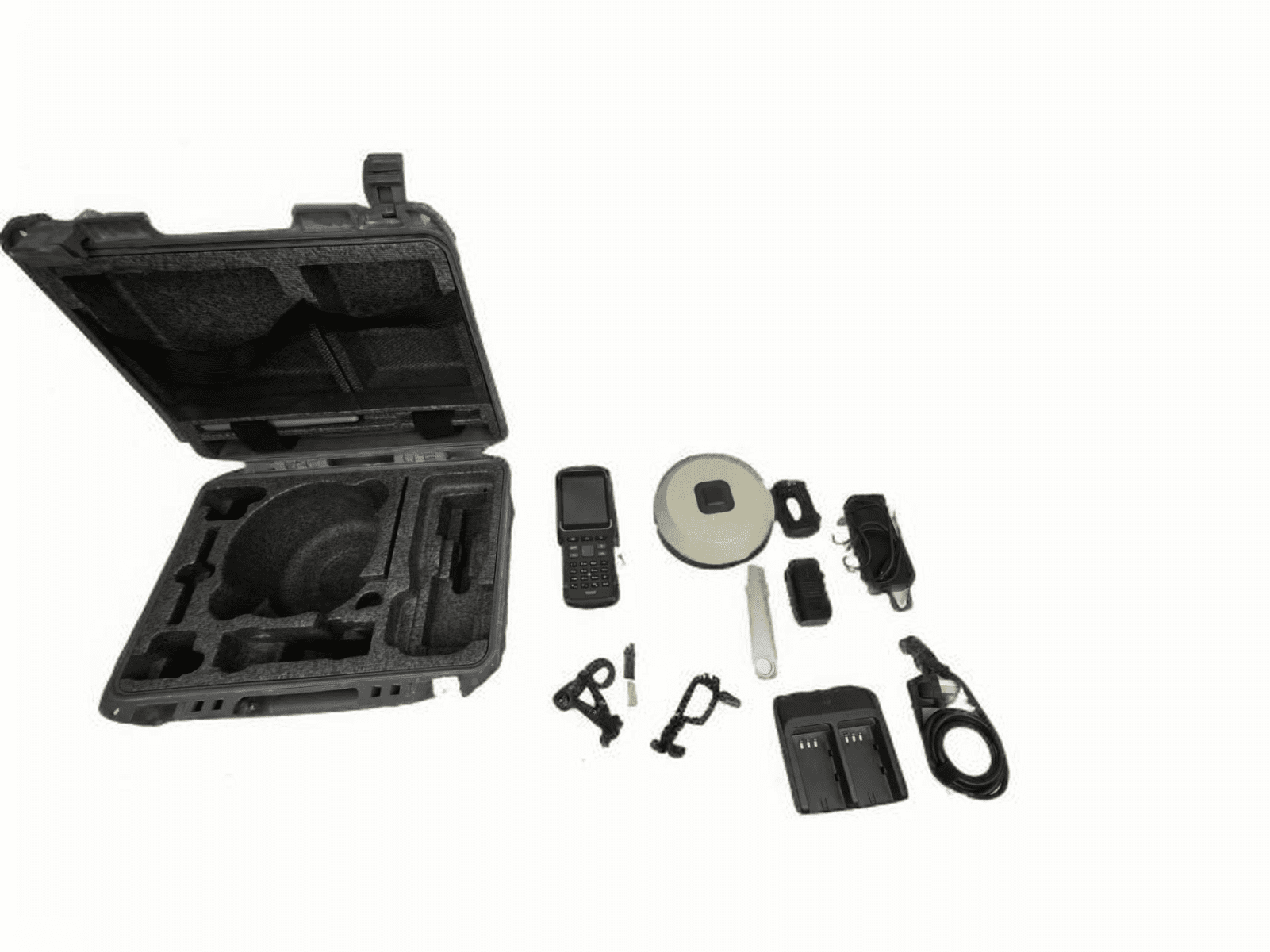

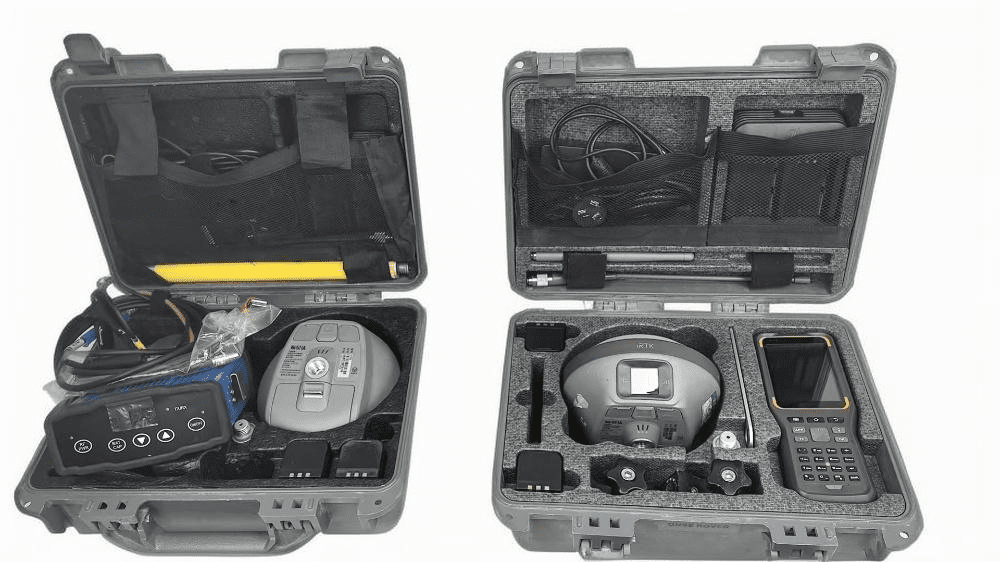

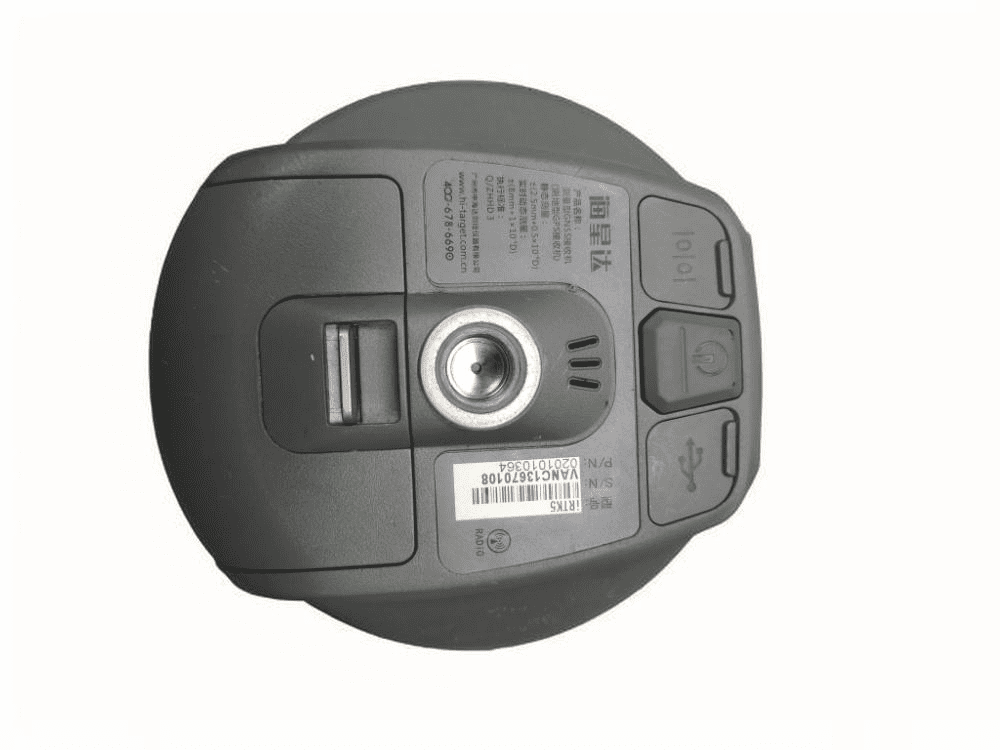

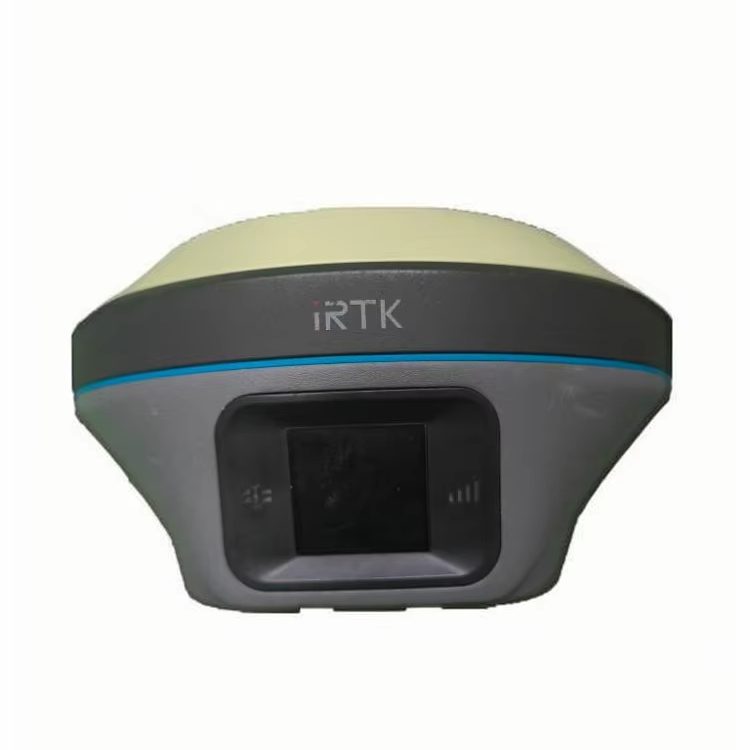

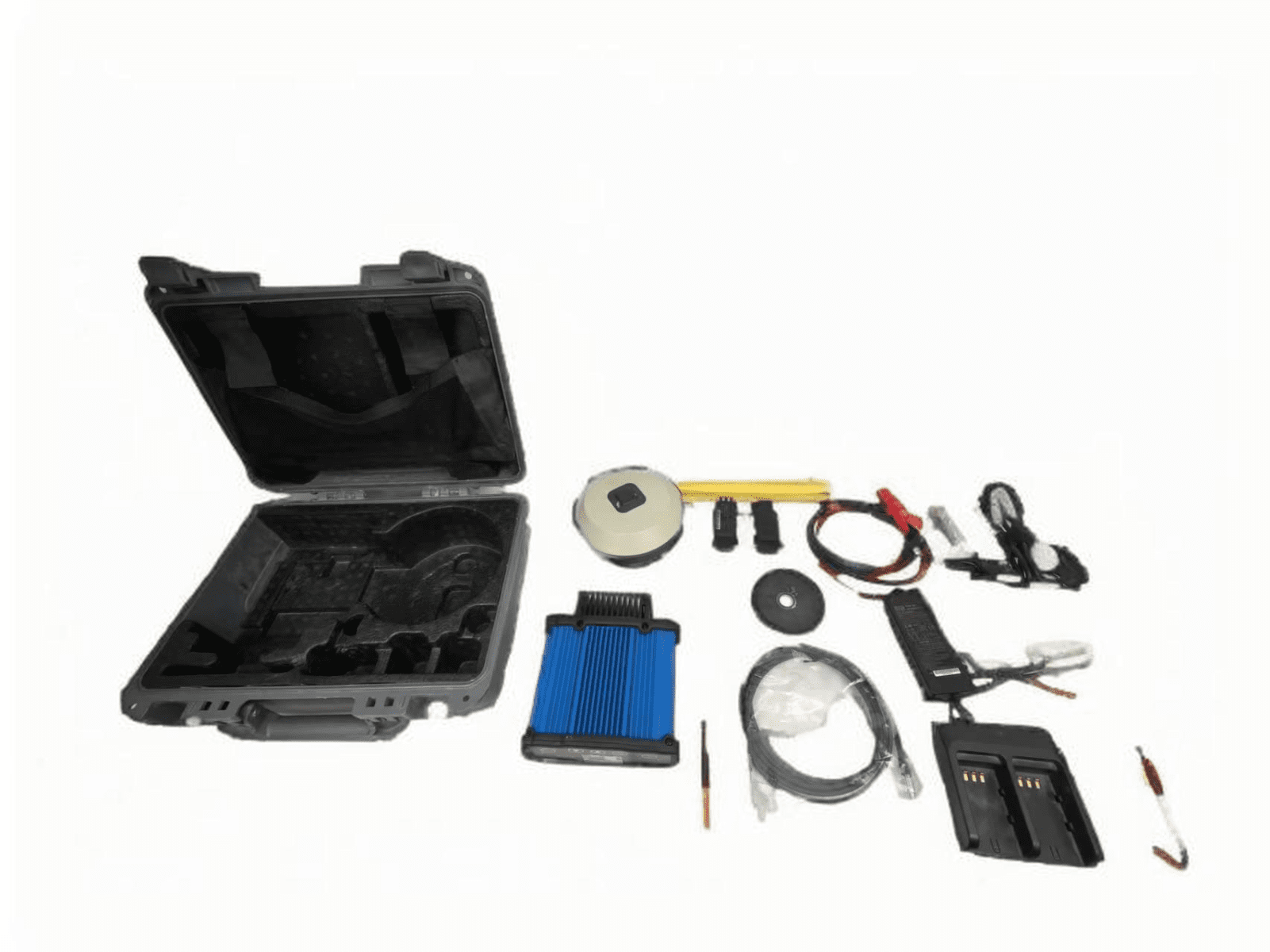

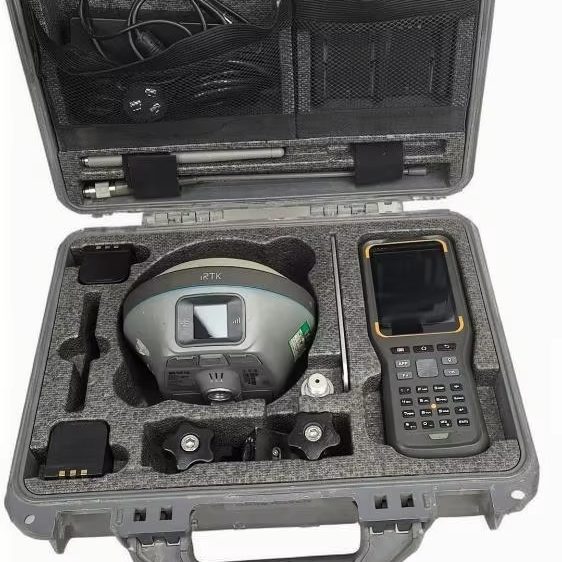

Used Hi Target Irtk5 GPS RTK Receiver Base Rover 660 Channels GNSS RTK Perment Code Low Price

Model

irtk5

System Configuration

Data storage

8GB Internal storage (Support up to 32GB external SD card)

Record GNS and RINEX format simultaneously

Data Formats

1Hz positioning output, up to 50Hz

CMR: CMR, CMR+, sCMRx input and output

RTCM: RTCM 2.1, 2.2,2.3, 3.0, 3.1, 3.2 input and output

Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS

Navigation outputs binary: GSOF

Satellite Signals Tracked Simultaneously

Channels

1408

BDS

B1,B2

GPS

Simultaneous L1C/A, L2C, L2E, L5

GLONASS

Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P

SBAS

Simultaneous L1 C/A, L5

GALILEO

Simultaneous L1 BOC, E5A, E5B, E5AltBOC

Static and Fast Static GNSS Surveying

Horizontal

2.5mm+0.5ppm RMS

Vertical

5mm+0.5ppm RMS

Post Processing Kinematic (PPK / Stop & Go) GNSS Surveying

Horizontal

1cm+1ppm RMS

Vertical

2.5cm+1ppm RMS

Initialization time

Typically 10 minutes for base while 5minutes for rover

Initialization reliability

Typically > 99.9%

Network RTK

Horizontal

8mm+1ppm RMS

Vertical

15mm+0.5ppm RMS

Initialization time

Typically < 8seconds

Initialization reliability

Typically > 99.9%

Code Differential GNSS Positioning

Horizontal

25cm+1ppm RMS

Vertical

50cm+1ppm RMS

SBAS

0.50m Horizontal, 0.85m Vertical

Power and Battery

Power

6V to 28V DC external power input,Power consumption ≤3.5W

Internal battery

Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery

Internal battery life

Static 12hours

RTK rover (UHF/GPRS/3G) 10 hours

RTK base more than 8 hours

I/O Interface

1 xBluetooth, NFC ,1 x standard USB2.0 port ,1 x TNC antenna connector,1 x RS232 serial port ,1 x DC power input (5-pin) ,1 x
MicroSD card port

Physical

Dimensions (W x H)

153mm x 83mm (6.02inch x 3.27inch)

Weight(without internal battery)

950g (2.09lb)

Operating temperature

-40ºC to +65ºC (-40ºF to +149ºF)

Storage temperature

-55ºC to +85ºC (-67ºF to +185ºF)

Humidity

100%, considering

Water/dustproof

IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).

Shock and vibration

Designed to survive a 3m(9.84ft) natural fall onto concrete.
