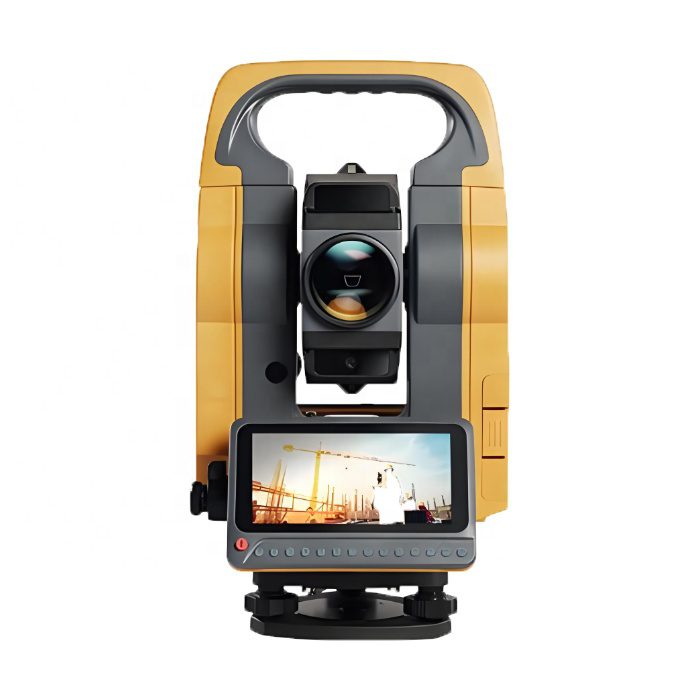

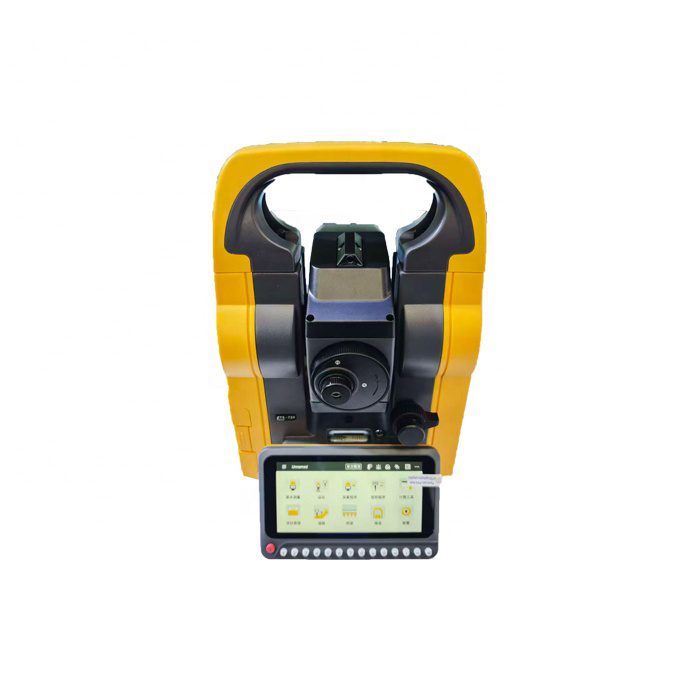

Compact Design Visual Stakeout 2″accuracy R1000 Android Total Station HTS720 Hi-target
Original price was: ₦3,860,703.83.₦3,040,353.83Current price is: ₦3,040,353.83.
In Stock
Did you like this product? Add to favorites now and follow the product.
Have a Question? Ask a Specialist
Description

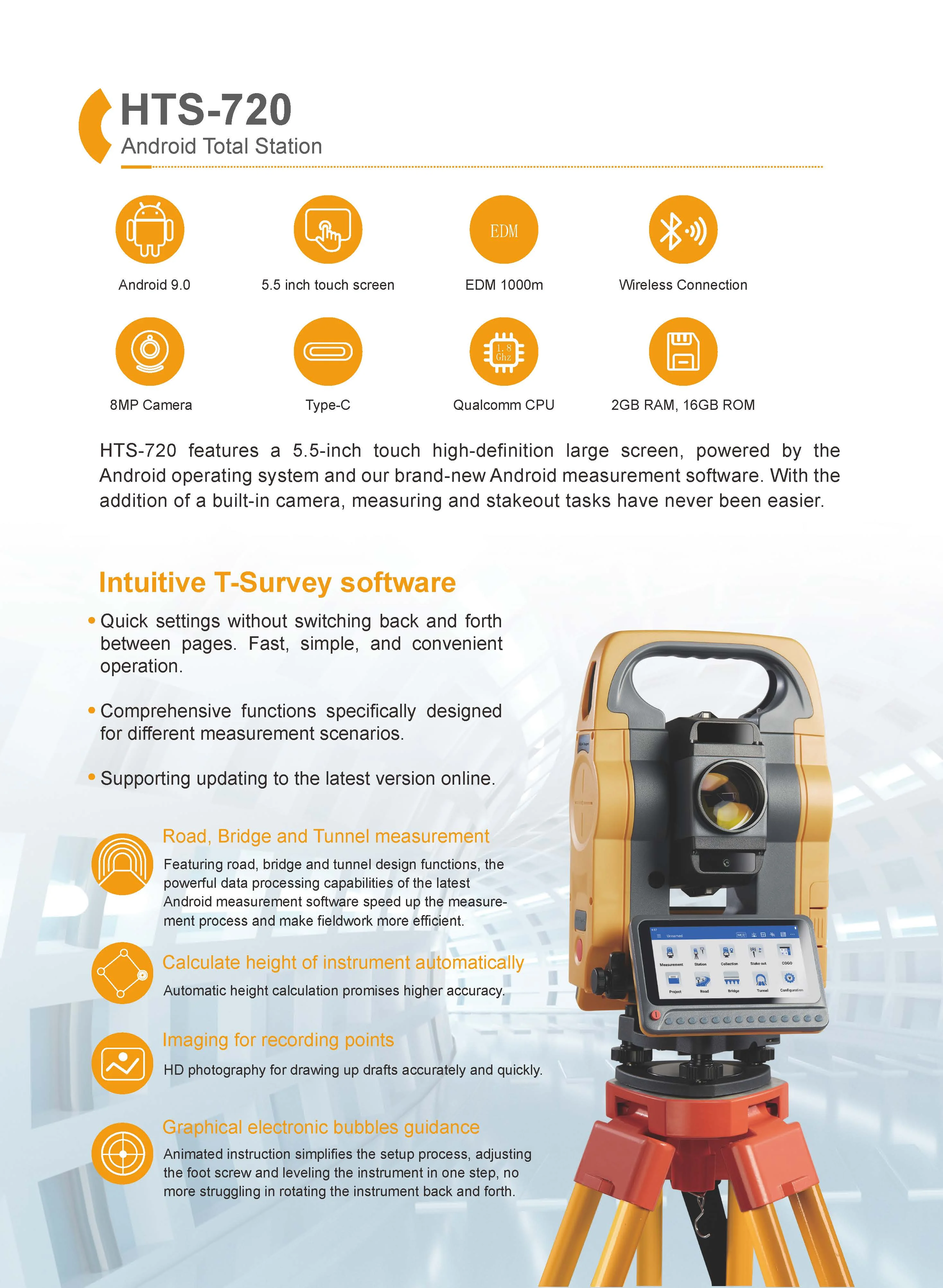

Smart Android Total Station
HTS-720 features a 5.5-inch touch high-definition large screen, powered by the Android operating system and our brand-new Android measurement software. With the addition of a built-in camera, measuring and stakeout tasks have never been easier. Plus, the HTS-720 boasts a high-performance processor, enabling users to select stakeout points and lines with just one click in CAD stakeout interface, making the entire stakeout process more intuitive and efficient.
5.5-inch Display, Endless Versatility
The HD screen delivers a true color display, making it great for viewing and performing tasks. Adaptive brightness adjustment and
half-sided screen operation settings for a versatile workflow in any lighting condition and single-tasking.
half-sided screen operation settings for a versatile workflow in any lighting condition and single-tasking.
8MP Camera, Visual Guidance
HTS-720 features an 8MP HD camera, ideal for capturing point data and enabling precise visual stakeouts. With image survey
support, users of all experience levels can easily identify point locations via real-time guidance on the screen.
HTS-720 features an 8MP HD camera, ideal for capturing point data and enabling precise visual stakeouts. With image survey
support, users of all experience levels can easily identify point locations via real-time guidance on the screen.
Android T-Survey Software Makes Quick Work
Quick settings without switching back and forth between pages. Fast, simple, and convenient operation. Comprehensive functions
specifically designed for different measurement scenarios. Supporting updating to the latest version online.
Quick settings without switching back and forth between pages. Fast, simple, and convenient operation. Comprehensive functions
specifically designed for different measurement scenarios. Supporting updating to the latest version online.

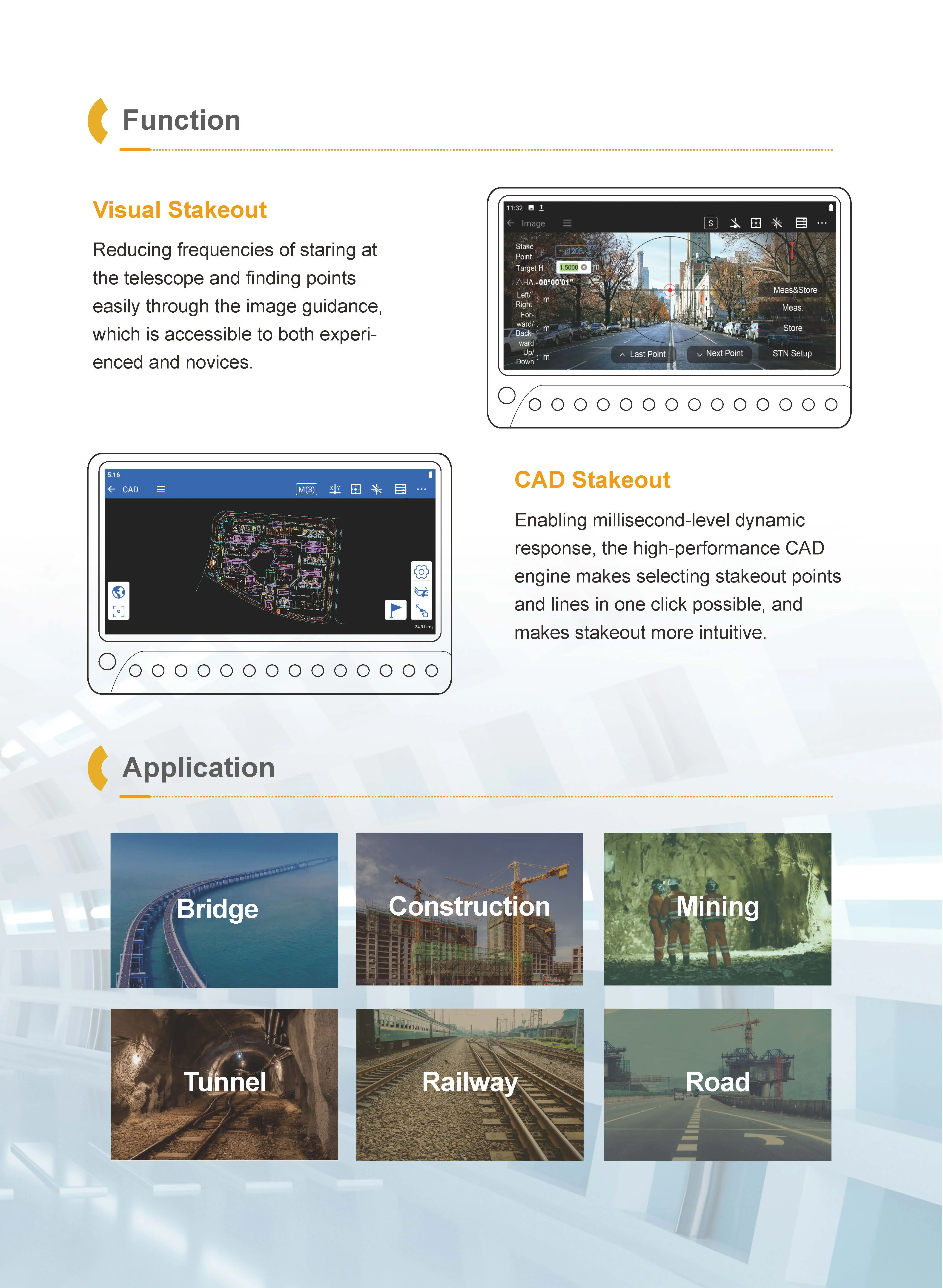

CAD Stakeout, Select Points With Ease
High-performance processor chip supports importing large CAD drawings. The powerful CAD stakeout function makes selecting stakeout
points and lines in one click possible, and makes stakeout more intuitive.
High-performance processor chip supports importing large CAD drawings. The powerful CAD stakeout function makes selecting stakeout
points and lines in one click possible, and makes stakeout more intuitive.

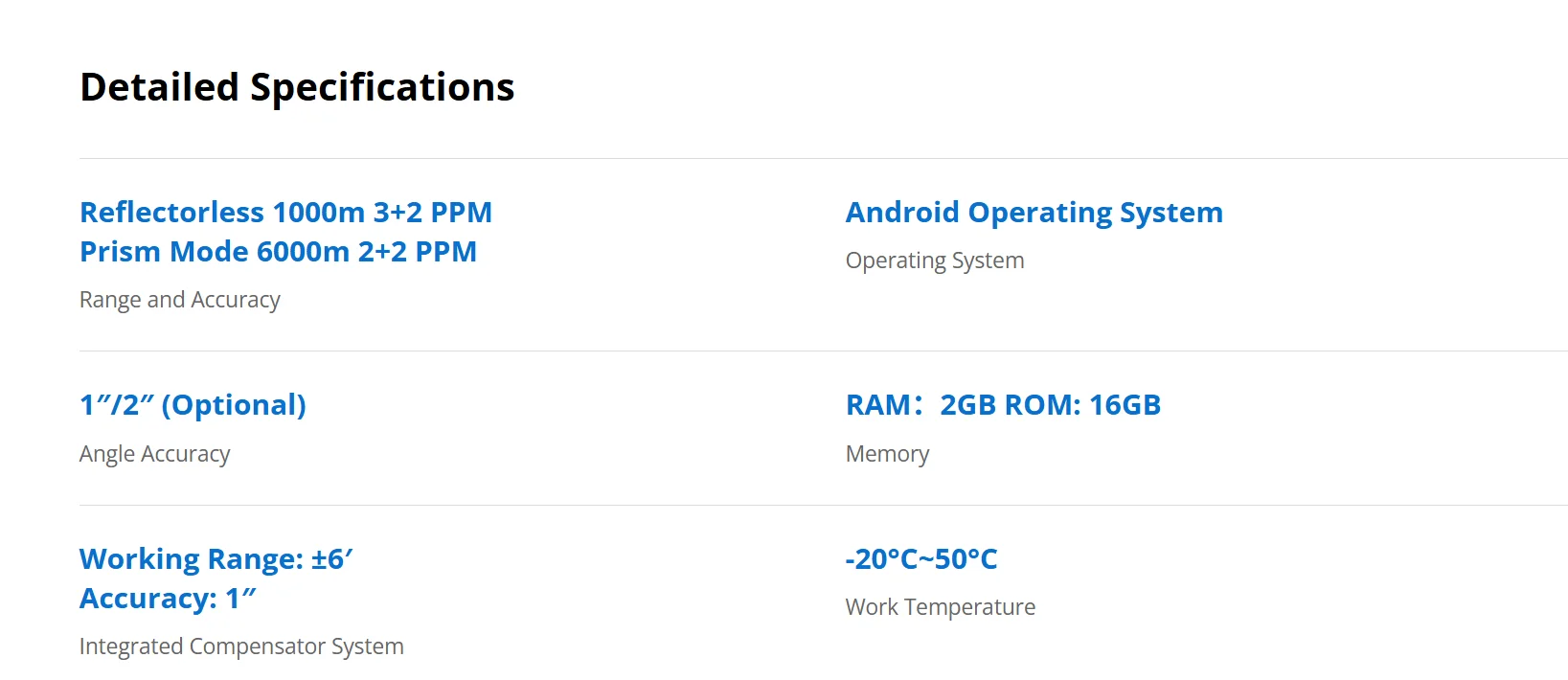

Product Paramenters
|
SPECIFICATIONS Hi target HTS-720 |
|
|
Angle Measurement |
|
|
Angle Measuring Principle |
Absolute Encoding |
|
Minimum Readout |
0.1″ |
|
Accuracy |
1”/2”(Optional) |
|
Telescope |
|
|
Magnification |
30X |
|
Field of View |
1°30′ |
|
Minimum Focusing Distance |
1.5 m |
|
Reticle |
Illuminated |
|
Compensation |
|
|
System |
Dual-axis |
|
Working Range |
±6′ |
|
Accuracy |
1″ |
|
Distance Measurement (Prism Mode) |
|
|
Single Prism¹(General / Good Atmosphere) |
5000 m / 6000 m |
|
Accuracy (Fine / Quick / Tracking) |
2 mm+2 ppm |
|
Measuring Time³ (Repeat / Tracking) |
0.5 s / 0.3 s |
|
Reflectorless |
|
|
Range² (The target is Kodak white board with reflect rate 90%) |
1000 m |
|
Accuracy (Change according to the different reflector condition) |
3 mm+2 ppm |
|
Measuring Time³ (Repeat / Tracking) |
Approx. 1s |
|
Communication |
|
|
Interface |
Type-C(OTG), TF Card, RS232 |
|
WLAN |
2.4 GHz Dual-Band, Support AP mode |
|
Bluetooth |
BT2.1+EDR / 3.0 / 4.2 LE |
|
Microphone / Speaker |
Available |
|
System Configuration |
|
|
Operation System |
Android9.0 |
|
Processor |
Qualcomm CPU@ octa-core 1.8 GHz |
|
Memory |
RAM：2 GB ROM: 16 GB |
|
Display System |
|
|
Display |
5.5″ touch screen, 720*1440 |
|
Camera |
|
|
Pixel |
8 MP |
|
Levels |
|
|
Tube level |
30″ / 2 mm |
|
Circular level |
8′ / 2 mm |
|
Plummet |
|
|
Type |
Laser Point |
|
Accuracy |
1 mm(Instrument Hight 1.5 m) |
|
Environmental |
|
|
Operating Temperature |
-20°C ~ 50°C |
|
Storage Temperature |
-40°C ~ 55°C |
|
Temperature and Air Pressure Input |
Automatic sensor |
|
Dust&Water Proof (IEC60529 Standard) |
IP65 |
|
Power Supply⁴ |
|
|
Battery Type |
High-energy lithium battery |
|
Voltage/Capacity |
7.4V / 6600 mAh |
|
Measuring Times |
Approx. 30000 times |
|
Dimension |
|
|
Size |
206 mm*213 mm*374 mm |
|
Weight |
5.75Kg(battery included) |

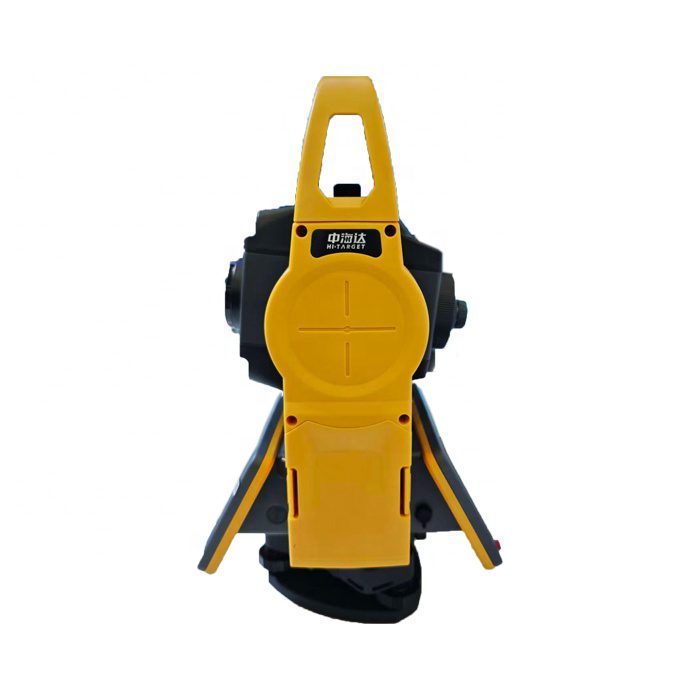

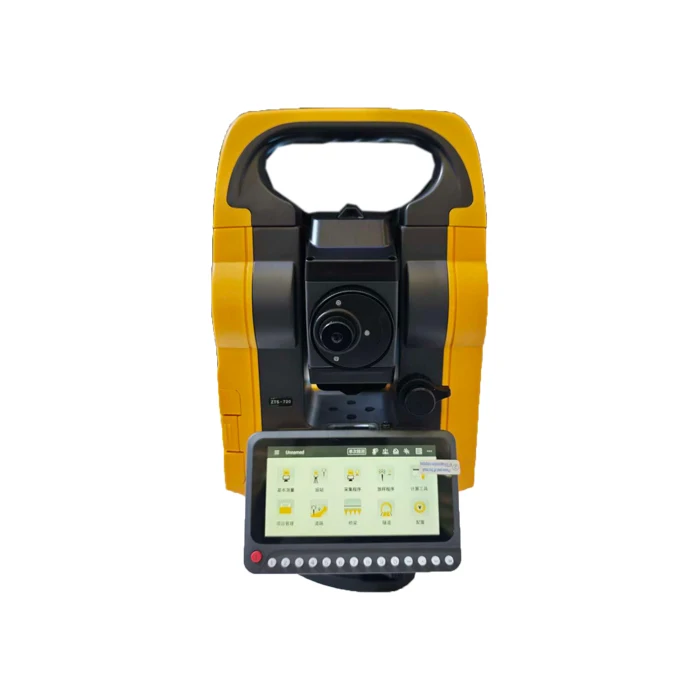

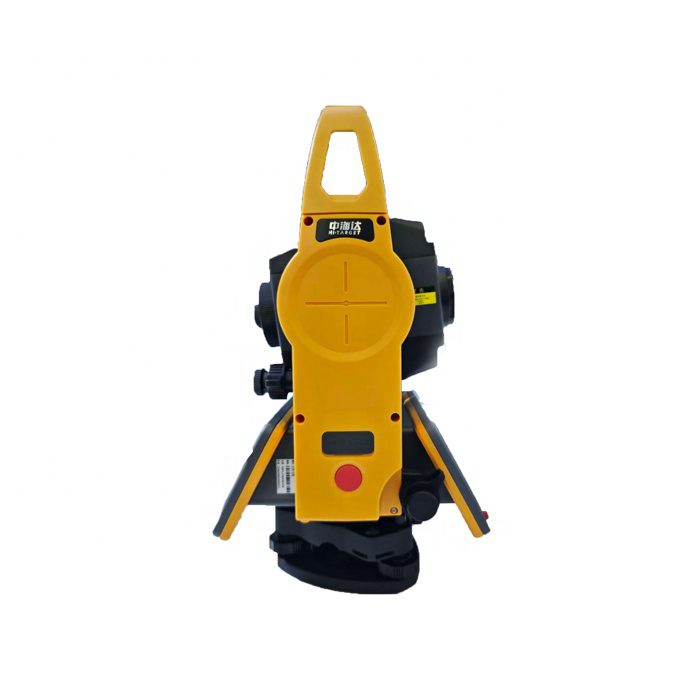

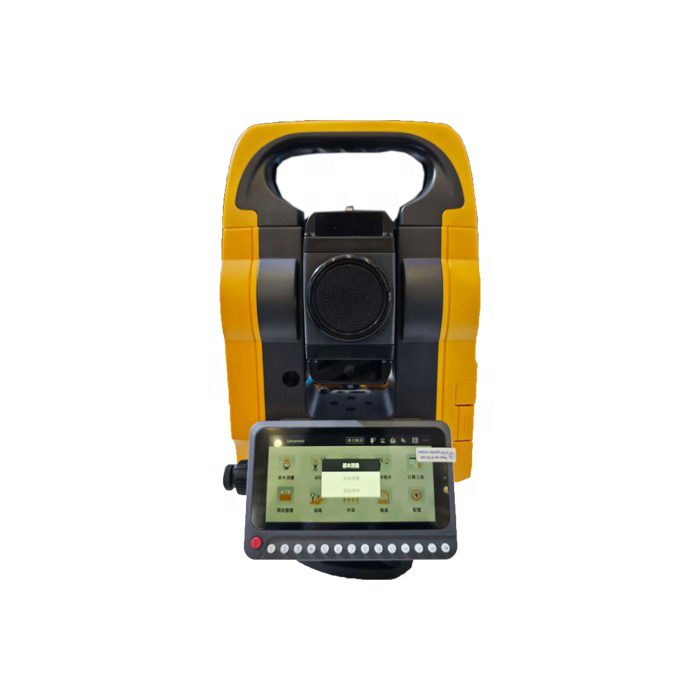

Details Images
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 55 × 45 × 55 in |
| Type | Mechanical Total Station |
| IP Rating | IP65 |
| Model Number | HTS720 |
| Product name | Total Station |
| Application | Surveying |
| Field of View | 1°30 |
| System | Dual-axis |
| Single Prism(General / Good Atmosphere) | 5000 m / 6000 m |
| Magnification | 30x |
| Brand Name | Hi Targe |
| Model | HTS720 |
| Function | Processing |
| Color | Yellow |
| Accuracy | 2 mm+2 ppm |
| Measuring Time³ (Repeat / Tracking) | 0.5 s / 0.3 s |
