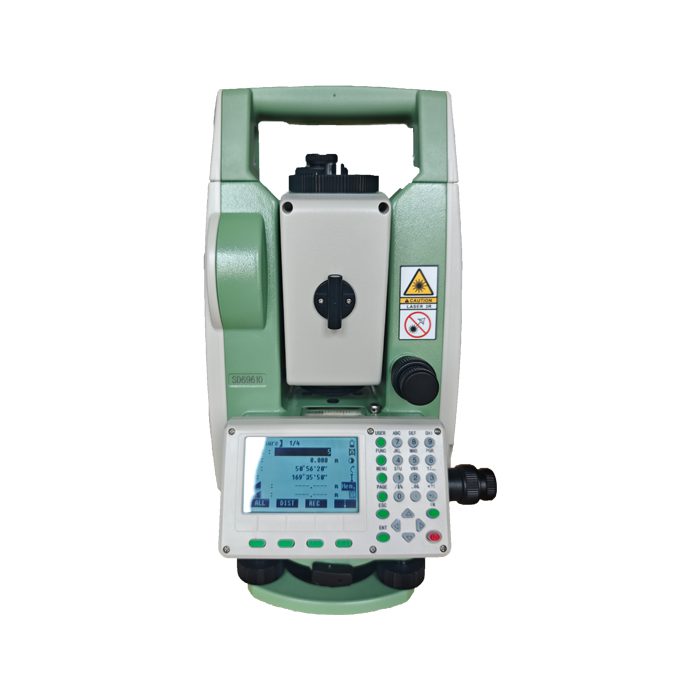

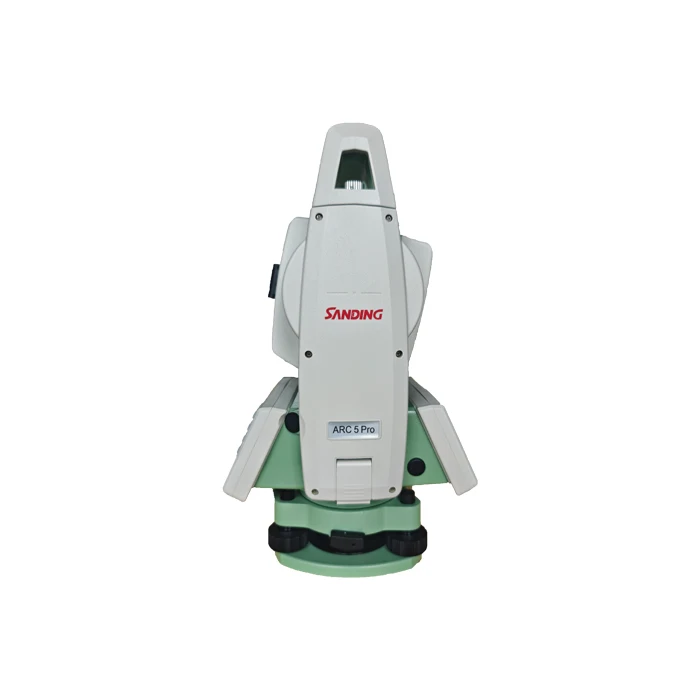

High Precision SanDing Arc5Pro Total Station Measuring Instrument R1000 Reflective 2-inch Precision Optical
High Precision SanDing Arc5Pro Total Station Measuring Instrument R1000 Reflective 2-inch Precision Optical - Image 2
High Precision SanDing Arc5Pro Total Station Measuring Instrument R1000 Reflective 2-inch Precision Optical - Image 3
High Precision SanDing Arc5Pro Total Station Measuring Instrument R1000 Reflective 2-inch Precision Optical - Image 4
High Precision SanDing Arc5Pro Total Station Measuring Instrument R1000 Reflective 2-inch Precision Optical - Image 5
High Precision SanDing Arc5Pro Total Station Measuring Instrument R1000 Reflective 2-inch Precision Optical - Image 6
Weight 18 kg
Dimensions 55 × 45 × 55 in
Type

Electronic Total Station
IP Rating

IP66
Model Number

Arc5Pro
Application

Surveying

Erect
Field of view

1"30"
Distance measurement

Prism 5000m
Magnification

32X
Brand Name

SanDing
Power

Battery
Display

Double LCD Screen
Working temperture

20 ~60

High Precision SanDing Arc5Pro Total Station Measuring Instrument R1000 Reflective 2-inch Precision Optical

In Stock

₦2,052,242.25

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

Start Live Chat

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Categories: ,

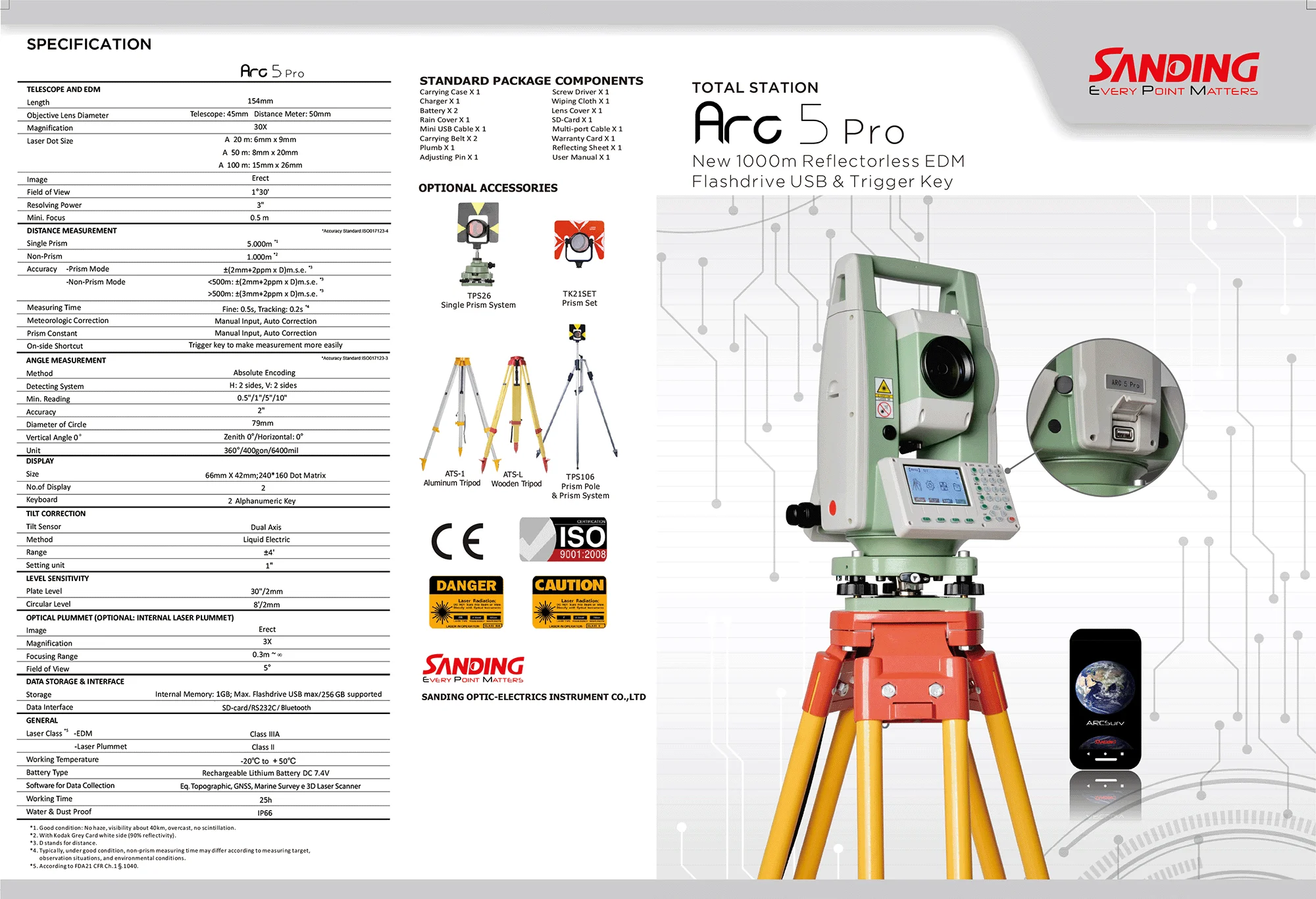

Description

Certificate

TELESCOPE
Tube Length
154mm
Objective Lens Diameter
Telescope: 45mm; EDM: 50mm
Magnification
30X
Erect
Field of View
1°30’
Resolving Power
3”
Min. Focus
1.0m
DISTANCE MEASUREMENT
Single Prism
5000m
Non-Prism
1000m
Accuracy -Prism Mode
±2mm+2ppm

Non-Prism Mode
<500m:±2mm+2ppm
>500m: ±3mm+2ppm
Measuring time
fine: 1s; tracking: 0.5s
Atmospheric Correction
T-P Sensor, Auto Detect and Correct
Prism Constant
Manual Input, Auto Correction
ANGLE MEASUREMENT
Method
Absolute Encoding
Detecting System
H: 2 sides V: 2 sides
Min Reading
0.5”/1”/5”10” selectable
Accuracy
2”
Diameter of Circle
79mm
Vertical Angle 0°
Zenith: 0°/Horizontal:0°
Unit
360°/400gon/6400mil
DISPLAY
Size
3.5”; 320*240 Dot Matrix
No.of Display
2 Color Screens
Keyboard
Alphanumeric
TILT CORRECTION
Tilt Sensor
Dual Axis
Method
Liquid Electric
Range
±3′
Setting Unit
1”
LEVEL SENSITIVITY
Plate Level
30”/2mm
circular vial
10’/2mm
OPTICAL PLUMMET(OPTIONAL:INTERNAL LASER PLUMMET)
Erect
Magnification
3X
Focusing Range
0.3m ~ ∞
Field of View
5°
DATA STORAGE INTERFACE
Storage
Internal Memory: 1GB ; Max.SD card:32GB
Data Interface
SD-card/Mini USB/RS232C
GENERAL
Laser Class *5 -EDM
Class IIIA
-Laser Plummet
Class II
Working Temperature
-20°C~ + 50°C
Battery Type
Rechargeable Lithium Battery
Battery Voltage
DC 7.4V
Working Time
8h
Water & Dust Proof
IP55

Details Images详图

Additional information

Weight 18 kg
Dimensions 55 × 45 × 55 in
Type

Electronic Total Station
IP Rating

IP66
Model Number

Arc5Pro
Application

Surveying

Erect
Field of view

1"30"
Distance measurement

Prism 5000m
Magnification

32X
Brand Name

SanDing
Power

Battery
Display

Double LCD Screen
Working temperture

20 ~60
